Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 52 |
|---|
| Bohrungsdurchmesser d2 | 10 |
|---|
| Bohrungskennzeichnung | B - ohne Nabennut |
|---|
| Form | A - ohne Griff |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d3 | 22 |
|---|
| d4 | 37 |
|---|
| d5 | 39,5 |
|---|
| b | 13 |
|---|
| h | 3,8 |
|---|
| l1 | 23 |
|---|
| l2 | 17 |
|---|
| l3 ≈ | 19 |
|---|
| r | 15,5 |
|---|
| {Sp:s} Zylinderknopf | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,056 kg |
|---|

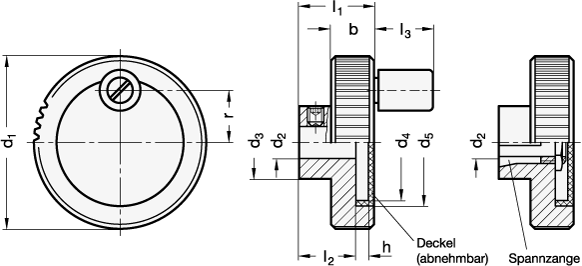

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 736 |
|---|
| Order designation | GN 736-52-B10-A |
|---|
| EAN | 4045525364561 |
|---|
| Manufacturer designation (German) | Zustellräder, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010390 |
|---|
