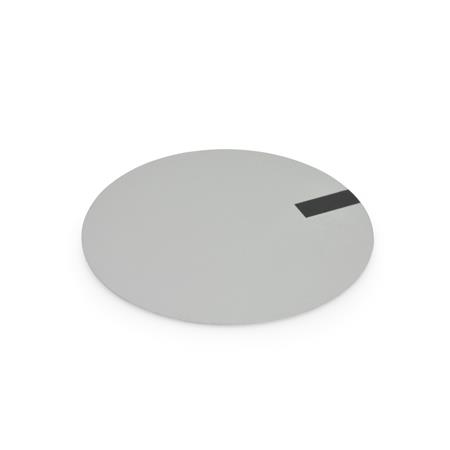

Deckschilder GN 226.1, Aluminium – Ganter GN 226.1-39-A

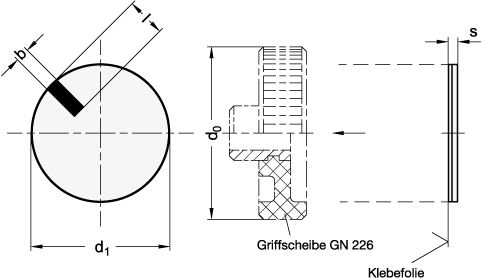

Dimensional drawing Ganter GN 226.1-39-A
Preview: Deckschilder GN 226.1, Aluminium – Ganter GN 226.1-39-A
Preview: Dimensional drawing Ganter GN 226.1-39-A
Deckschilder GN 226.1, Aluminium
Deckschilder GN 226.1, Aluminium – Ganter GN 226.1-39-A
Dimensional drawing Ganter GN 226.1-39-A
Mobile Preview: Deckschilder GN 226.1, Aluminium – Ganter GN 226.1-39-A
Mobile Preview: Dimensional drawing Ganter GN 226.1-39-A

Deckschilder GN 226.1, Aluminium

Product No.:
226.1-39-A
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Durchmesser d139
    FormA - mit schwarzer Markierung
    WerkstoffAL - Aluminium
    d2 Griffscheibe50
    b4
    Länge l10
    s0,4
    RoHSJa
    Gewicht0,002 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 226.1
    Order designationGN 226.1-39-A
    EAN4045525101371
    Manufacturer designation (German)Deckschilder für Griffscheiben GN 226
    Order unitPiece
    Customs tariff number76169990
    eCl@ss 5.1.490909090
