Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 50 |
|---|
| Form | B - neutral |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d0 Drehknopf Ø GN 526 | 42 |
|---|
| l1 | 7 |
|---|
| l2 | 39 |
|---|
| s | 1 |
|---|
| Anzahl Teilstriche Form S | 40 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,006 kg |
|---|

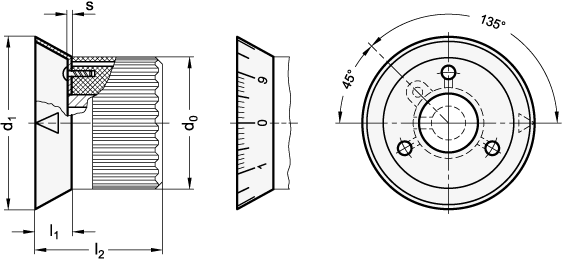

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 526.1 |
|---|
| Order designation | GN 526.1-50-B |
|---|
| EAN | 4045525276451 |
|---|
| Manufacturer designation (German) | Skalenringe für GN 526 |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23019101 |
|---|
