Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 42 |
|---|
| Untersetzung | 40 |
|---|
| Form | R - Ziffern steigend bei Rechtsdrehung |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| Untersetzung Messwerk | 2:1 |
|---|
| x9 | 10:1 |
|---|
| x10 | 20:1 |
|---|
| x11 | 40:1 |
|---|
| x1 | 72:1 |
|---|
| d2 | 49,8 |
|---|
| d3 | 48,2 |
|---|
| l1 | 30 |
|---|
| l2 | 23 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,075 kg |
|---|

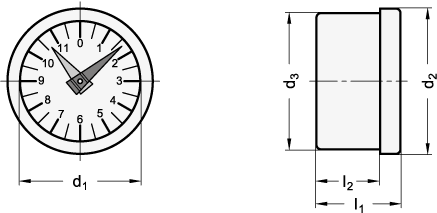

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 000.8 |
|---|
| Order designation | GN 000.8-42-40-R |
|---|
| EAN | 4045525001497 |
|---|
| Manufacturer designation (German) | Stellungsanzeiger, Pendelsystem analog |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90318080 |
|---|
| eCl@ss 5.1.4 | 23309290 |
|---|
