Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 42 |
|---|
| Bohrung d2 (Kennz.1) | B 8 |
|---|
| Form | N - Deckel neutral |
|---|
| Kennziffer | 1 - mit Druckschraube |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d4 | 32 |
|---|
| d5 | 30 |
|---|
| d6 | M 5 |
|---|
| h1 | 23 |
|---|
| h2 | 17 |
|---|
| h3 | 4 |
|---|
| Länge l | 8,5 |
|---|
| t | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,069 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 726 |
|---|
| Order designation | GN 726-42-B8-N-1 |
|---|
| EAN | 4045525362390 |
|---|

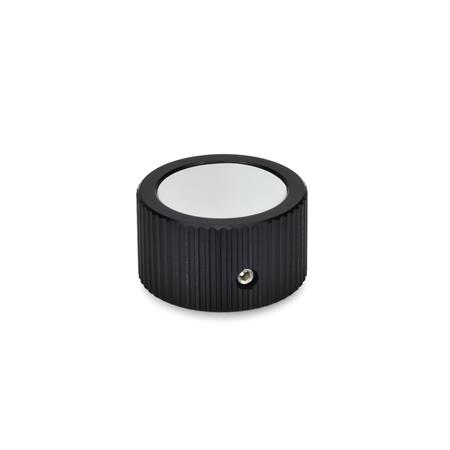

| Manufacturer designation (German) | Drehknöpfe, Aluminium, schwarz eloxiert |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010101 |
|---|
