Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 60 |
|---|
| Zählwerk | 0001,0 |
|---|
| Form | L - Ziffern steigend bei Linksdrehung |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| Skala Anzahl der Teilstriche | 100 |
|---|
| Ablesegenauigkeit des Zeigers | 0,01 |
|---|
| d2 | 68,5 |
|---|
| d3 | 67 |
|---|
| l1 | 33 |
|---|
| l2 | 26 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,119 kg |
|---|

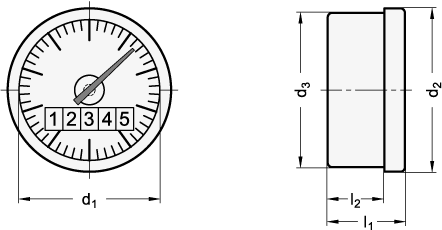

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 000.3 |
|---|
| Order designation | GN 000.3-60-0001.0-L |
|---|
| EAN | 4045525000049 |
|---|
| Manufacturer designation (German) | Stellungsanzeiger, Pendelsystem, digital / analog |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90318080 |
|---|
| eCl@ss 5.1.4 | 23309290 |
|---|
