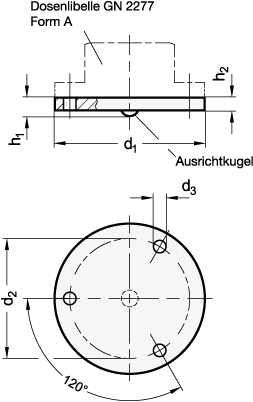

Dimensional drawing Ganter GN 2277.1-NI-25
Preview: Justierplatten für Dosenlibellen GN 2277.1 – Ganter GN 2277.1-NI-25
Preview: Dimensional drawing Ganter GN 2277.1-NI-25
Justierplatten für Dosenlibellen GN 2277.1
Justierplatten für Dosenlibellen GN 2277.1 – Ganter GN 2277.1-NI-25
Dimensional drawing Ganter GN 2277.1-NI-25
Mobile Preview: Justierplatten für Dosenlibellen GN 2277.1 – Ganter GN 2277.1-NI-25
Mobile Preview: Dimensional drawing Ganter GN 2277.1-NI-25

Justierplatten für Dosenlibellen GN 2277.1

Product No.:
2277.1-NI-25
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNI - Edelstahl
    Durchmesser d125
    d221
    d32,2
    h13,2
    h21,2
    RoHSJa
    Gewicht0,004 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 2277.1
    Order designationGN 2277.1-NI-25
    EAN4045525004917
    Manufacturer designation (German)Justierplatten
    Order unitPiece
    Customs tariff number90319000
    eCl@ss 5.1.421160192
