Technical data (manufacturer information, German terms)
| Länge l1 | 57 |
|---|
| Empfindlichkeit | 6 - Winkelminuten, pro 2 mm Blasenweg |
|---|
| Werkstoff / Oberfläche | MSW - schwarz, RAL 9005, strukturmatt |
|---|
| Füllung | G - grün-transparent |
|---|
| Kennziffer | 1 - Sichtfenster oben |
|---|
| Werkstoff | MS - Messing |
|---|
| b | 12 |
|---|
| d | 4,5 |
|---|
| h1 | 13 |
|---|
| h2 | 1 |
|---|
| l2 | 37 |
|---|
| m | 45 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,013 kg |
|---|

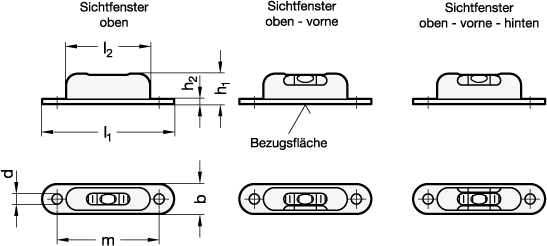

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2282 |
|---|
| Order designation | GN 2282-MSW-57-G-6-1 |
|---|
| EAN | 4045525005716 |
|---|
| Manufacturer designation (German) | Längslibellen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90319000 |
|---|
| eCl@ss 5.1.4 | 21160190 |
|---|
