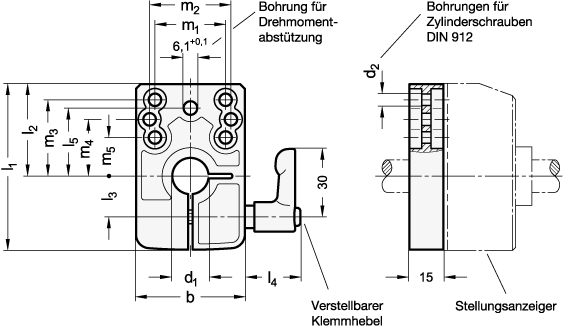

Dimensional drawing Ganter GN 9053.6-48-B15
Preview: Klemmplatten GN 9053.6 – Ganter GN 9053.6-48-B15
Preview: Dimensional drawing Ganter GN 9053.6-48-B15
Klemmplatten GN 9053.6
Klemmplatten GN 9053.6 – Ganter GN 9053.6-48-B15
Dimensional drawing Ganter GN 9053.6-48-B15
Mobile Preview: Klemmplatten GN 9053.6 – Ganter GN 9053.6-48-B15
Mobile Preview: Dimensional drawing Ganter GN 9053.6-48-B15

Klemmplatten GN 9053.6

Product No.:
9053.6-48-B15
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Breite b48
    Bohrung d1B 15
    WerkstoffZD - Zink-Druckguss
    d25,5
    l173
    l240,5
    l318
    l424,5
    l530
    m134
    m236
    m333,6
    m425
    m517
    RoHSJa
    Gewicht0,228 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 9053.6
    Order designationGN 9053.6-48-B15
    EAN4045525565128
    Manufacturer designation (German)Klemmplatten für Stellungsanzeiger GN 9053 / GN 9153
    Order unitPiece
    Customs tariff number79070000
    eCl@ss 5.1.423309290
