Technical data (manufacturer information, German terms)
| Durchmesser d1 | 25 |
|---|
| Empfindlichkeit | 30 - Winkelminuten, pro 2 mm Blasenweg |
|---|
| Form | A - Befestigungsflansch zum Aufsetzen |
|---|
| Werkstoff / Oberfläche | ALN - eloxiert, naturfarben |
|---|
| Füllung | K - farblos-transparent |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d2 | 12 |
|---|
| d3 | 17 |
|---|
| d4 | 21 |
|---|
| d5 | 2,2 |
|---|
| h1 | 10 |
|---|
| h2 | 2 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,005 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2277 |
|---|
| Order designation | GN 2277-ALN-25-K-30-A |
|---|
| EAN | 4045525004979 |
|---|

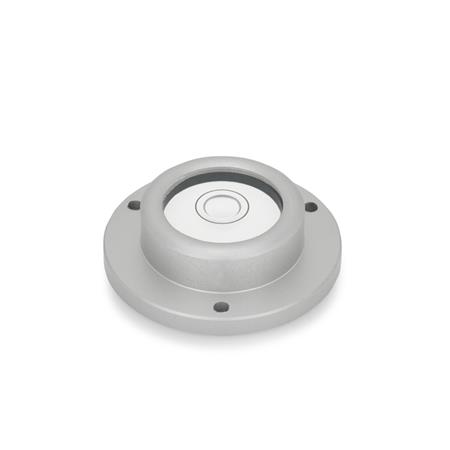

| Manufacturer designation (German) | Dosenlibellen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90319000 |
|---|
| eCl@ss 5.1.4 | 21160108 |
|---|
