Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 50 |
|---|
| Bohrungsdurchmesser d2 | 10 |
|---|
| Bohrungskennzeichnung | B - ohne Nabennut |
|---|
| Farbe der Abdeckkappe | DRT - rot, RAL 3000, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| Bohrungsdurchmesser | B 10 |
|---|
| d3 | 22 |
|---|
| d4 | 43 |
|---|
| d5 | 28 |
|---|
| d6 | 40 |
|---|
| d7 | 4 |
|---|
| d8 | 4,2 |
|---|
| l1 | 38 |
|---|
| l2 | 3,5 |
|---|
| l3 | 22 |
|---|
| l4 | 12 |
|---|
| l5 | 14 |
|---|
| r | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,095 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 624 |
|---|
| Order designation | GN 624-50-B10-DRT |
|---|
| EAN | 4045525320031 |
|---|

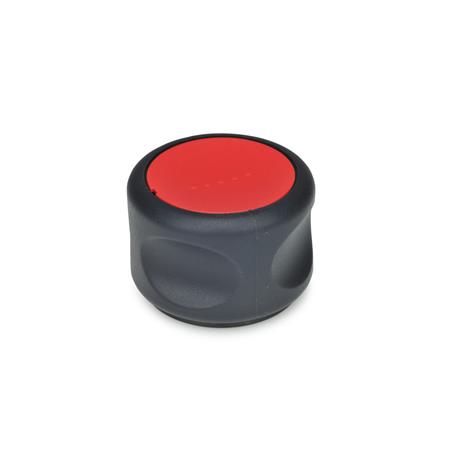

| Manufacturer designation (German) | Drehknöpfe, Kunststoff, Buchse Stahl, Softline |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010101 |
|---|
