Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 66 |
|---|
| Bohrung d2 | K 14 |
|---|
| Form | S - mit Standard-Skala 0...9, 100 Teilstriche |
|---|
| Werkstoff | ST - Stahl |
|---|
| Bohrung | B 12 |
|---|
| Bohrung filtercolumn1 | B 14 |
|---|
| d3 | 52 |
|---|
| d4 | 55 |
|---|
| d5 | 5,5 |
|---|
| l1 | 44 |
|---|
| l2 | 9 |
|---|
| l3 | 40 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,560 kg |
|---|

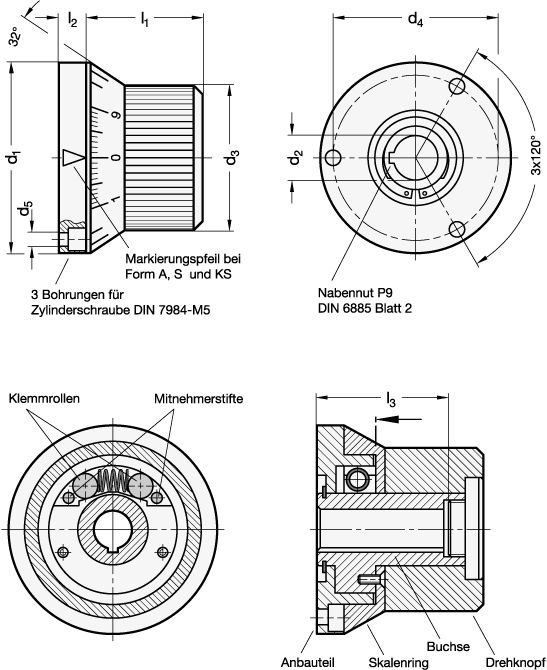

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 700 |
|---|
| Order designation | GN 700-66-K14-S |
|---|
| EAN | 4045525353190 |
|---|
| Manufacturer designation (German) | Verstellknöpfe mit stufenloser Arretierung |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010101 |
|---|
