Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 24 |
|---|
| Bohrung d2 | B 5 |
|---|
| Form | B - neutral, ohne Markierungspfeil oder Skala |
|---|
| Oberfläche | MT - matt gestrahlt |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d3 | 22 |
|---|
| d4 | M 4 |
|---|
| h1 | 24 |
|---|
| h2 | 8 |
|---|
| Länge l | 12 |
|---|
| t min. | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,078 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 436.1 |
|---|
| Order designation | GN 436.1-24-B5-B-MT |
|---|
| EAN | 4045525701823 |
|---|

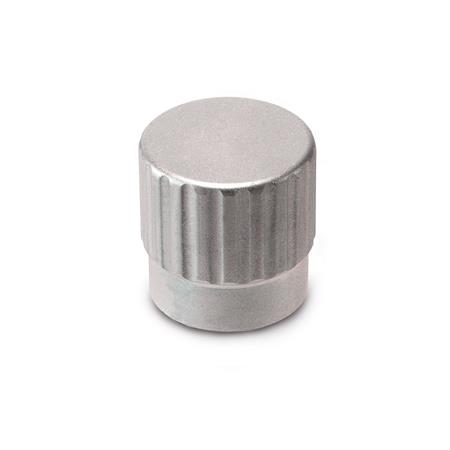

| Manufacturer designation (German) | Drehknöpfe, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010101 |
|---|
