Technical data (manufacturer information, German terms)
| Grifflänge l1 | 30 |
|---|
| Anschlussgewinde d1 | M 6 |
|---|
| Farbe (Ausrastknopf) | DRT - rot, RAL 3000, glänzend |
|---|
| Griffkoerpermaterial | PA - Kunststoff, Polyamid |
|---|
| d2 | 12 |
|---|
| d3 | 15,5 |
|---|
| h1 | 29,5 |
|---|
| h2 | 6 |
|---|
| h3 | 30 |
|---|
| h4 Rastweg | 3,5 |
|---|
| t min. | 10 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,010 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 603 |
|---|
| Order designation | GN 603-30-M6-DRT |
|---|
| EAN | 4045525613140 |
|---|

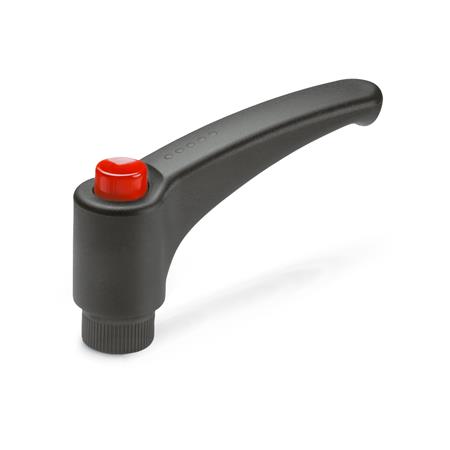

| Manufacturer designation (German) | Verstellbare Klemmhebel, Kunststoff, Buchse Messing |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
