Technical data (manufacturer information, German terms)
| Länge l1 | 178 |
|---|
| Innengewinde d3 | M 10 |
|---|
| Form | B - Ratscheneinsatz mit Sackloch |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| b1 | 40 |
|---|
| b2 | 29,6 |
|---|
| d6 | 19 |
|---|
| d7 | 8 |
|---|
| h1 | 14 |
|---|
| h2 | 10,9 |
|---|
| h3 | 17,5 |
|---|
| t min. | 17 |
|---|
| Einsatz | M |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,292 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 318 |
|---|
| Order designation | GN 318-178-M10-B |
|---|
| EAN | 4045525519145 |
|---|

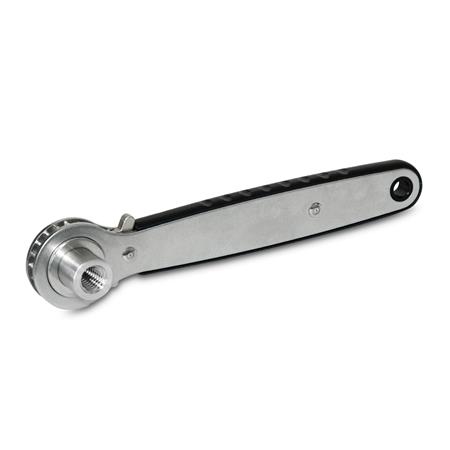

| Manufacturer designation (German) | Edelstahl-Ratschenspanner mit Durchgangs- / Sackloch |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82042000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
