Technical data (manufacturer information, German terms)
| Schalthebeldurchmesser d1 | 54 |
|---|
| d2 (Bohrung) | 14 |
|---|
| Bohrungskennzeichen | K - mit Nabennut DIN 6885-1 P9 |
|---|
| Farbe der Abdeckkappe | DRT - rot, RAL 3000, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| (Vierkant) | B 14 |
|---|
| d3 | 26 |
|---|
| d4 | 36 |
|---|
| d5 | 31 |
|---|
| d6 | 21 |
|---|
| d7 | 8 |
|---|
| b | 34 |
|---|
| h1 | 38 |
|---|
| h2 | 60 |
|---|
| h3 | 38 |
|---|
| h4 | 29,5 |
|---|
| h5 | 2,5 |
|---|
| h6 | 6 |
|---|
| k | 39 |
|---|
| l | 140 |
|---|
| r | 20,2 |
|---|
| s | 7,3 |
|---|
| t | 16 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,209 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 623.5 |
|---|

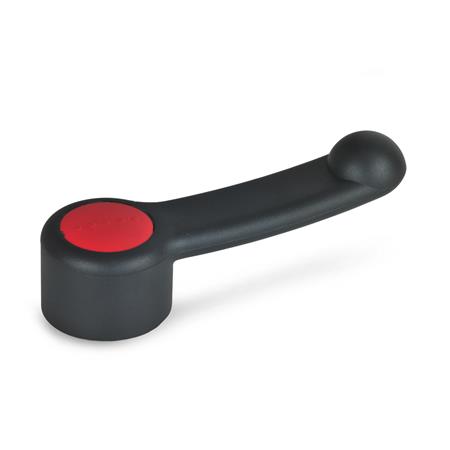

| Order designation | GN 623.5-54-K14-DRT |
|---|
| EAN | 4045525967458 |
|---|
| Manufacturer designation (German) | Schaltgriffe, Kunststoff, Buchse Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010502 |
|---|
