Technical data (manufacturer information, German terms)
| Anschlussgewinde d1 | M 20 |
|---|
| Bolzenlänge l1 | 55 |
|---|
| Form | D - ohne Druckstück |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d2 | 30 |
|---|
| d3 | 16 |
|---|
| d4 | 15,5 |
|---|
| l2 | 45 |
|---|
| l3 | 140 |
|---|
| l4 | 10 |
|---|
| l5 ≈ | 5,6 |
|---|
| z ≈ | 12,4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,502 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 6306 |
|---|
| Order designation | DIN 6306-M20-55-D |
|---|
| EAN | 4045525323261 |
|---|

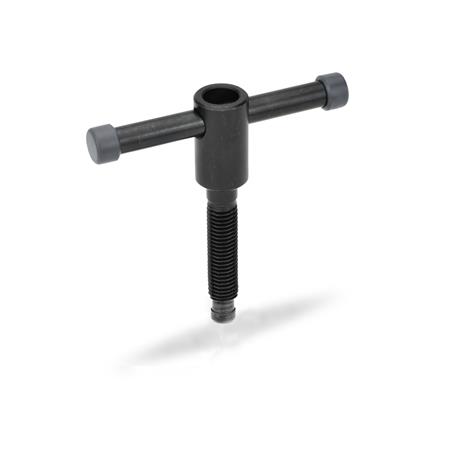

| Manufacturer designation (German) | Knebelschrauben, mit losem Knebel |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
