Technical data (manufacturer information, German terms)
| Grifflänge l1 | 160 |
|---|
| Anschlussgewinde d1 | M 20 |
|---|
| Form | N - Griff schräg mit Gewinde |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| Anschlussgewinde d11 | M 20 |
|---|
| Anschlussgewinde d12 | M 20 |
|---|
| Anschlussbohrung d21 | B 20 |
|---|
| Anschlussbohrung d22 | B 20 |
|---|
| b | 30 |
|---|
| d3 | 25 |
|---|
| d4 ≈ | 29,5 |
|---|
| d5 | 40 |
|---|
| h ≈ | 76 |
|---|
| l2 ≈ | 152 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,569 kg |
|---|

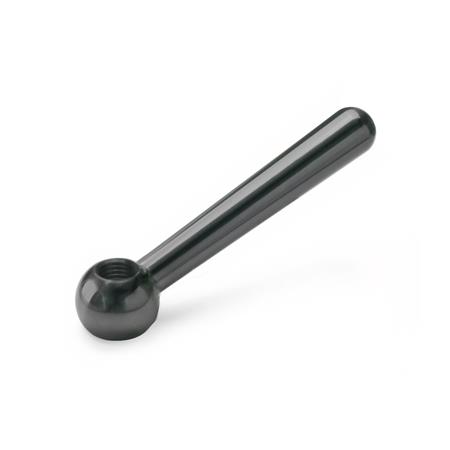

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 99 |
|---|
| Order designation | DIN 99-160-M20-N |
|---|
| EAN | 4045525421059 |
|---|
| Manufacturer designation (German) | Kegelgriffe, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
