Technical data (manufacturer information, German terms)
| Durchmesser d1 | 28 |
|---|
| Anschlussgewinde d2 | M 10 |
|---|
| Form | D - Hebel gerade |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d3 | 19 |
|---|
| d4 | 12 |
|---|
| d5 | 30 |
|---|
| h2 | 49 |
|---|
| h3 | 8,5 |
|---|
| Form D | 56 |
|---|
| h5 Rastweg | 4 |
|---|
| t min. | 17 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,273 kg |
|---|

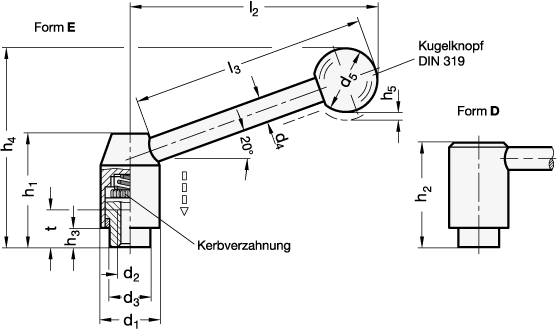

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 312 |
|---|
| Order designation | GN 312-28-M10-D |
|---|
| EAN | 4045525169951 |
|---|
| Manufacturer designation (German) | Sicherheits-Spannhebel, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
