Technical data (manufacturer information, German terms)
| Durchmesser d1 | 22 |
|---|
| Bohrung d3 (Form B) | B 10 |
|---|
| Form | B - Hebel gerade mit Bohrung H7 |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d4 | 8 |
|---|
| d5 | 20 |
|---|
| h1 | 37 |
|---|
| Form B Form D | 40,5 |
|---|
| l2 ≈ | 85 |
|---|
| t2 min. | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,127 kg |
|---|

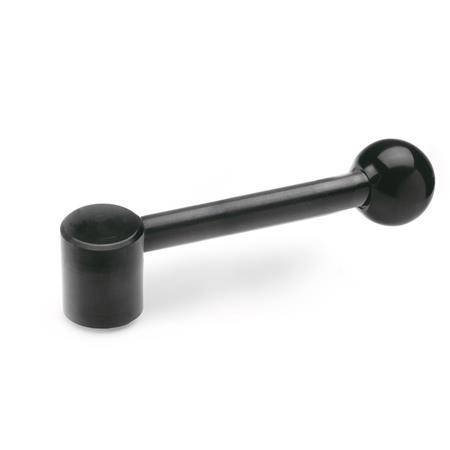

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 212 |
|---|
| Order designation | GN 212-22-B10-B |
|---|
| EAN | 4045525087873 |
|---|
| Manufacturer designation (German) | Spannhebel, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
