Technical data (manufacturer information, German terms)
| Durchmesser d1 | 36 |
|---|
| Anschlussgewinde d2 | M 10 |
|---|
| Gewindelänge l1 | 25 |
|---|
| Form | E - Hebel gebogen |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d3 | 16 |
|---|
| d4 | 10 |
|---|
| d5 | 25 |
|---|
| h1 | 24,5 |
|---|
| h2 | 2 |
|---|
| h3 | 15 |
|---|
| h4 ≈ | 45 |
|---|
| h5 Rastweg | 4,5 |
|---|
| l2 | 120 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,239 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 125 |
|---|
| Order designation | GN 125-36-M10-25-E |
|---|
| EAN | 4045525041844 |
|---|

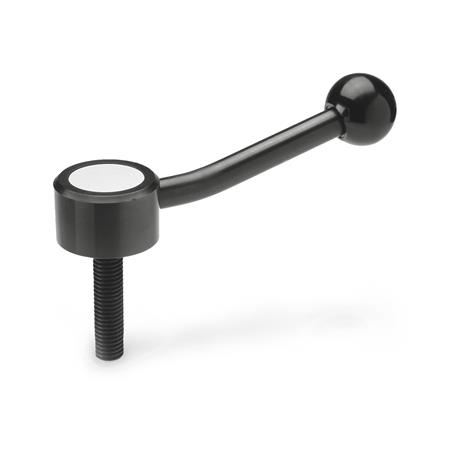

| Manufacturer designation (German) | Verstellbare Flachspannhebel mit Außengewinde,Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
