Technical data (manufacturer information, German terms)
| Durchmesser d1 | 33 |
|---|
| Anschlussgewinde d2 | M 12 |
|---|
| Gewindelänge l1 | 25 |
|---|
| Form | D - Hebel gerade |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d3 | 23 |
|---|
| d4 | 12 |
|---|
| d5 | 32 |
|---|
| h2 | 51,5 |
|---|
| h3 | 6 |
|---|
| Form D | 60 |
|---|
| h5 Rastweg | 5,5 |
|---|
| l3 ≈ | 124 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,428 kg |
|---|

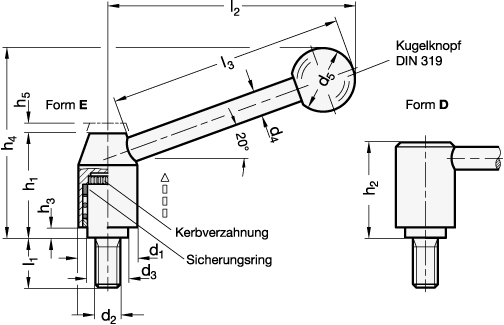

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 212.3 |
|---|
| Order designation | GN 212.3-33-M12-25-D |
|---|
| EAN | 4045525091160 |
|---|
| Manufacturer designation (German) | Verstellbare Spannhebel, Schraube, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
