Technical data (manufacturer information, German terms)
| Durchmesser d1 | 25 |
|---|
| Anschlussgewinde d2 | M 12 |
|---|
| Farbe | OS - orange, RAL 2004, strukturmatt |
|---|
| Griffkoerpermaterial | ZD - Zink-Druckguss |
|---|
| d3 | 19 |
|---|
| h1 | 43 |
|---|
| h2 | 11 |
|---|
| h3 ≈ | 63 |
|---|
| h4 Rastweg | 4 |
|---|
| l2 | 89 |
|---|
| t min. | 17 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,169 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 101 |
|---|
| Order designation | GN 101-25-M12-OS |
|---|
| EAN | 4045525825581 |
|---|

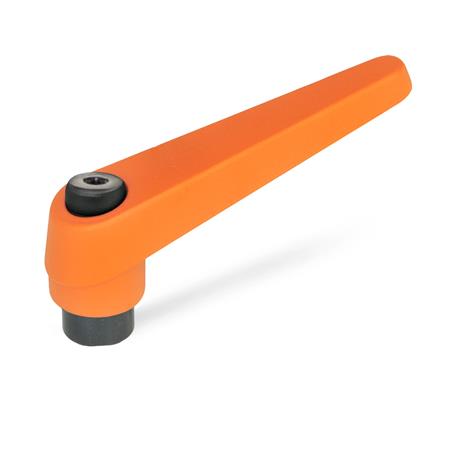

| Manufacturer designation (German) | Verstellbare Klemmhebel, Zink-Druckguss, Buchse Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
