Technical data (manufacturer information, German terms)
| Durchmesser d1 | 24 |
|---|
| Anschlussgewinde d2 | M 10 |
|---|
| Gewindelänge l1 | 50 |
|---|
| Form | E - Hebel schräg |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d3 | 16 |
|---|
| d4 | 10 |
|---|
| d5 | 25 |
|---|
| h1 | 44 |
|---|
| h3 | 6,5 |
|---|
| h4 Form E | 78 |
|---|
| h5 Rastweg | 3,5 |
|---|
| l2 Form E | 101 |
|---|
| l3 | 96 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,194 kg |
|---|

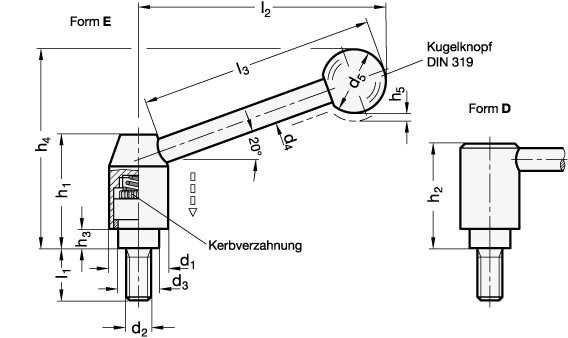

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 312 |
|---|
| Order designation | GN 312-24-M10-50-E |
|---|
| EAN | 4045525169838 |
|---|
| Manufacturer designation (German) | Sicherheits-Spannhebel, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
