Technical data (manufacturer information, German terms)
| Durchmesser d1 | 28 |
|---|
| Anschlussbohrung d2 | B 12 |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| b1 | 17,5 |
|---|
| b2 | 15 |
|---|
| d3 | M 10 |
|---|
| d4 Griffstange | 12 |
|---|
| Länge l | 41 |
|---|
| t min. | 14 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,113 kg |
|---|

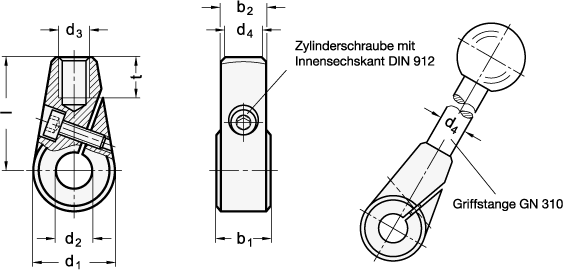

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 150 |
|---|
| Order designation | GN 150-28-B12 |
|---|
| EAN | 4045525056145 |
|---|
| Manufacturer designation (German) | Klemmnaben, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269096 |
|---|
| eCl@ss 5.1.4 | 23020401 |
|---|
