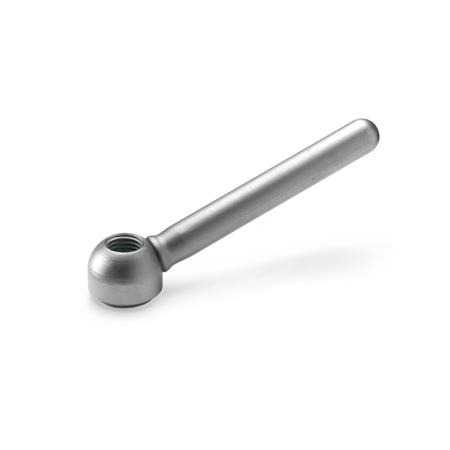

Spannmuttern GN 99.6, Edelstahl, 1.4404 (A4) – Ganter GN 99.6-100-M12-A4
Dimensional drawing Ganter GN 99.6-100-M12-A4
Preview: Spannmuttern GN 99.6, Edelstahl, 1.4404 (A4) – Ganter GN 99.6-100-M12-A4
Preview: Dimensional drawing Ganter GN 99.6-100-M12-A4
Spannmuttern GN 99.6, Edelstahl, 1.4404 (A4)
Spannmuttern GN 99.6, Edelstahl, 1.4404 (A4) – Ganter GN 99.6-100-M12-A4
Dimensional drawing Ganter GN 99.6-100-M12-A4
Mobile Preview: Spannmuttern GN 99.6, Edelstahl, 1.4404 (A4) – Ganter GN 99.6-100-M12-A4
Mobile Preview: Dimensional drawing Ganter GN 99.6-100-M12-A4

Spannmuttern GN 99.6, Edelstahl, 1.4404 (A4)

Product No.:
99.6-100-M12-A4
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffA4 - Edelstahl
    Grifflänge l1100
    Anschlussgewinde d1M 12
    d225
    d314
    h119
    h2 ≈46
    l2 ≈95
    RoHSJa
    Gewicht0,140 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 99.6
    Order designationGN 99.6-100-M12-A4
    EAN4045525906624
    Manufacturer designation (German)Edelstahl-Spannmuttern, 1.4404 (A4)
    Order unitPiece
    Customs tariff number73181639
    eCl@ss 5.1.423110710
