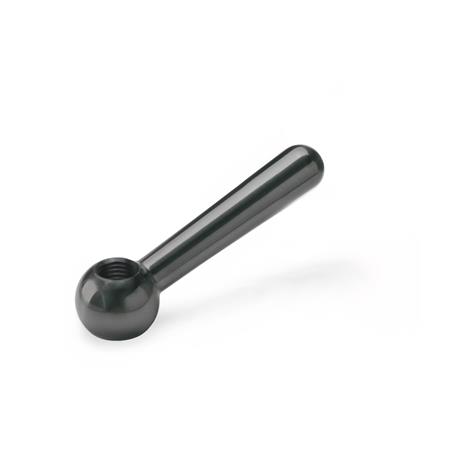

Verkürzte Kegelgriffe GN 204, Stahl – Ganter GN 204-10-M8-N

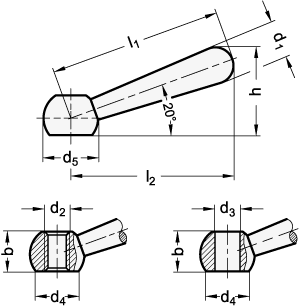

Dimensional drawing Ganter GN 204-10-M8-N
Preview: Verkürzte Kegelgriffe GN 204, Stahl – Ganter GN 204-10-M8-N
Preview: Dimensional drawing Ganter GN 204-10-M8-N
Verkürzte Kegelgriffe GN 204, Stahl
Verkürzte Kegelgriffe GN 204, Stahl – Ganter GN 204-10-M8-N
Dimensional drawing Ganter GN 204-10-M8-N
Mobile Preview: Verkürzte Kegelgriffe GN 204, Stahl – Ganter GN 204-10-M8-N
Mobile Preview: Dimensional drawing Ganter GN 204-10-M8-N

Verkürzte Kegelgriffe GN 204, Stahl

Product No.:
204-10-M8-N
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Durchmesser d110
    Anschlussgewinde d2M 8
    FormN - Griff schräg mit Gewinde
    GriffkoerpermaterialST - Stahl
    b11
    d4 ≈12,5
    d516
    h ≈26
    l150
    l2 ≈48
    RoHSJa
    Gewicht0,030 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 204
    Order designationGN 204-10-M8-N
    EAN4045525079892
    Manufacturer designation (German)Verkürzte Kegelgriffe, Stahl
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010190
