Technical data (manufacturer information, German terms)
| Schalthebeldurchmesser d1 | 32 |
|---|
| d2 | 10 |
|---|
| Bohrungskennzeichen | K - mit Nabennut DIN 6885-1 P9 |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | 8 |
|---|
| d4 | 20 |
|---|
| h1 | 18 |
|---|
| h2 | 6,5 |
|---|
| h3 ≈ | 48 |
|---|
| Länge l ≈ | 62 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,099 kg |
|---|

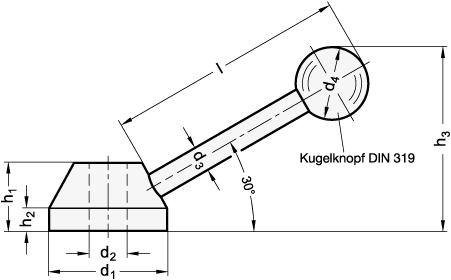

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 223 |
|---|
| Order designation | GN 223-32-K10 |
|---|
| EAN | 4045525098688 |
|---|
| Manufacturer designation (German) | Schalterknebel, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010502 |
|---|
