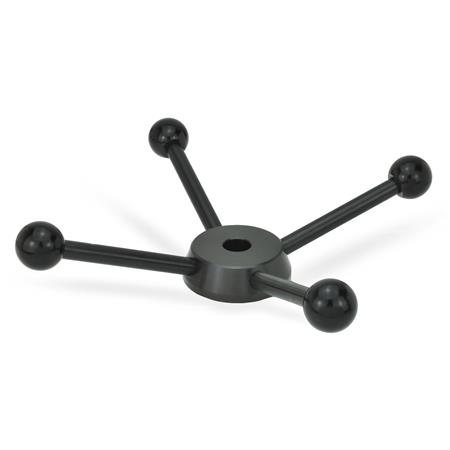

Schaltkreuze GN 213, Stahl – Ganter GN 213-65-B16

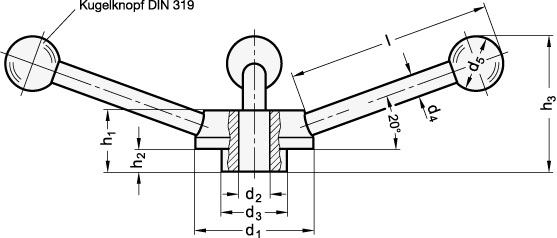

Dimensional drawing Ganter GN 213-65-B16
Preview: Schaltkreuze GN 213, Stahl – Ganter GN 213-65-B16
Preview: Dimensional drawing Ganter GN 213-65-B16
Schaltkreuze GN 213, Stahl
Schaltkreuze GN 213, Stahl – Ganter GN 213-65-B16
Dimensional drawing Ganter GN 213-65-B16
Mobile Preview: Schaltkreuze GN 213, Stahl – Ganter GN 213-65-B16
Mobile Preview: Dimensional drawing Ganter GN 213-65-B16

Schaltkreuze GN 213, Stahl

Product No.:
213-65-B16
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Schalthebeldurchmesser d165
    d216
    BohrungskennzeichenB - ohne Nabennut
    WerkstoffST - Stahl
    d335
    d412
    d530
    h132
    h212
    h3 ≈71
    Länge l ≈110
    RoHSJa
    Gewicht0,900 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 213
    Order designationGN 213-65-B16
    EAN4045525093812
    Manufacturer designation (German)Schaltkreuze, Stahl
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010502
