Technical data (manufacturer information, German terms)
| Durchmesser d1 | 28 |
|---|
| Anschlussgewinde d2 | M 12 |
|---|
| Form | N - Griff schräg |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d3 | 19 |
|---|
| d4 | 30 |
|---|
| d6 | 13 |
|---|
| h1 | 33,5 |
|---|
| h2 | 10,5 |
|---|
| h3 ≈ | 70,5 |
|---|
| l2 | 116 |
|---|
| l3 ≈ | 109 |
|---|
| t min. | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,170 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6337.3 |
|---|
| Order designation | GN 6337.3-28-M12-N |
|---|
| EAN | 4045525344105 |
|---|

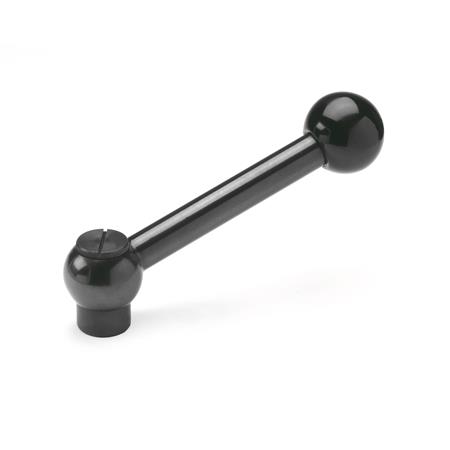

| Manufacturer designation (German) | Verstellbare Kugelgriffe, mit Innengewinde, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
