Technical data (manufacturer information, German terms)
| Grifflänge l1 | 78 |
|---|
| Anschlussgewinde d1 | M 8 |
|---|
| Werkstoff / Oberfläche | MDB - metalldetektierbar, blau, RAL 5001, matt |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| d2 | 16 |
|---|
| d3 | 23 |
|---|
| h1 | 36 |
|---|
| h2 | 3,5 |
|---|
| h3 | 46,5 |
|---|
| h4 Rastweg | 4 |
|---|
| t min. | 14 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,057 kg |
|---|

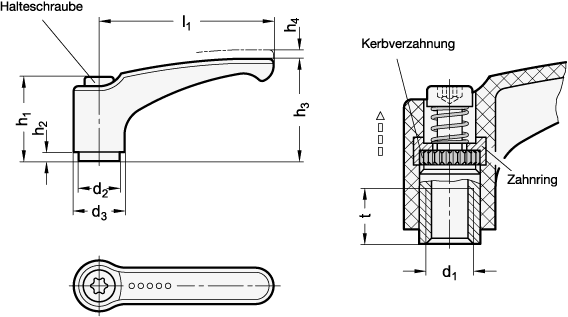

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 604.1 |
|---|
| Order designation | GN 604.1-78-M8-MDB |
|---|
| EAN | 4045525661530 |
|---|
| Manufacturer designation (German) | Verstellbare Klemmhebel, detektierbar, FDA-konformer Kunststoff, Gewindebuchse Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
