Technical data (manufacturer information, German terms)
| Durchmesser d1 | 40 |
|---|
| Anschlussgewinde d2 | M 12 |
|---|
| Gewindelänge l1 | 25 |
|---|
| Form | D - Hebel gerade |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d3 | 19 |
|---|
| d4 | 12 |
|---|
| d5 | 30 |
|---|
| h1 | 26,5 |
|---|
| h2 | 2 |
|---|
| h3 | 16 |
|---|
| h5 Rastweg | 4,5 |
|---|
| l2 | 130 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,336 kg |
|---|

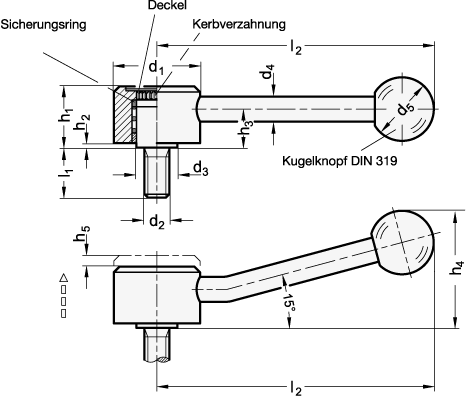

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 125 |
|---|
| Order designation | GN 125-40-M12-25-D |
|---|
| EAN | 4045525042254 |
|---|
| Manufacturer designation (German) | Verstellbare Flachspannhebel mit Außengewinde,Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
