Technical data (manufacturer information, German terms)
| Grifflänge l1 | 22 |
|---|
| Anschlussgewinde d1 | M 4 |
|---|
| Farbe | OS - orange, RAL 2004, strukturmatt |
|---|
| Griffkoerpermaterial | ZD - Zink-Druckguss |
|---|
| d3 | 8 |
|---|
| d4 | 10,5 |
|---|
| h1 | 18,5 |
|---|
| h2 | 2 |
|---|
| h3 | 23 |
|---|
| h4 Rastweg | 3 |
|---|
| t min. | 5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,012 kg |
|---|

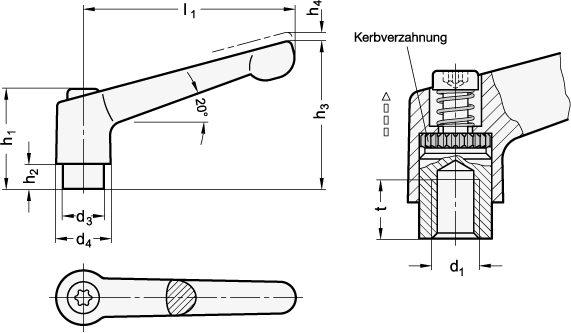

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 300.2 |
|---|
| Order designation | GN 300.2-22-M4-OS |
|---|
| EAN | 4045525510807 |
|---|
| Manufacturer designation (German) | Verstellbare Klemmhebel, Zink-Druckguss, Buchse Stahl verzinkt |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
