Technical data (manufacturer information, German terms)
| Durchmesser d1 | 28 |
|---|
| Anschlussgewinde d2 | M 10 |
|---|
| Form | E - Hebel schräg |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| d3 | 19 |
|---|
| d4 | 12 |
|---|
| d5 | 30 |
|---|
| h1 | 48,5 |
|---|
| h3 | 4,5 |
|---|
| h4 ≈ Form E | 89 |
|---|
| h5 Rastweg | 4,5 |
|---|
| l2 ≈ Form E | 116 |
|---|
| l3 ≈ | 110 |
|---|
| t min. | 17 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,245 kg |
|---|

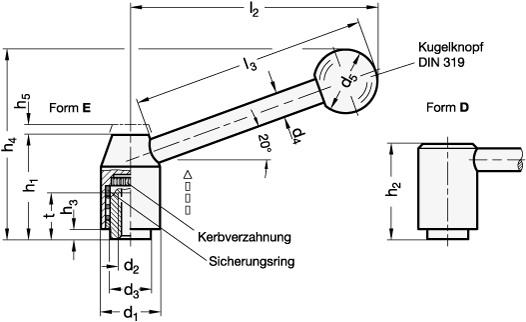

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 212.3 |
|---|
| Order designation | GN 212.3-28-M10-E |
|---|
| EAN | 4045525090682 |
|---|

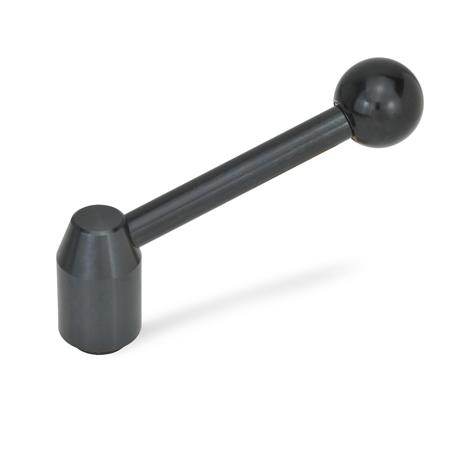

| Manufacturer designation (German) | Verstellbare Spannhebel, Innengewinde, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
