Technical data (manufacturer information, German terms)
| Grifflänge l1 | 63 |
|---|
| Anschlussgewinde d1 | M 8 |
|---|
| Gewindelänge l2 | 32 |
|---|
| Farbe | SG - schwarzgrau, RAL 7021, matt |
|---|
| Griffkoerpermaterial | PA - Kunststoff, Polyamid |
|---|
| d2 | 13,5 |
|---|
| d3 | 19 |
|---|
| h1 | 31 |
|---|
| h2 | 3,5 |
|---|
| h3 | 38,5 |
|---|
| h4 Rastweg | 4 |
|---|
| Verstellbar | True |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,047 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 604 |
|---|
| Order designation | GN 604-63-M8-32-SG |
|---|
| EAN | 4045525303102 |
|---|

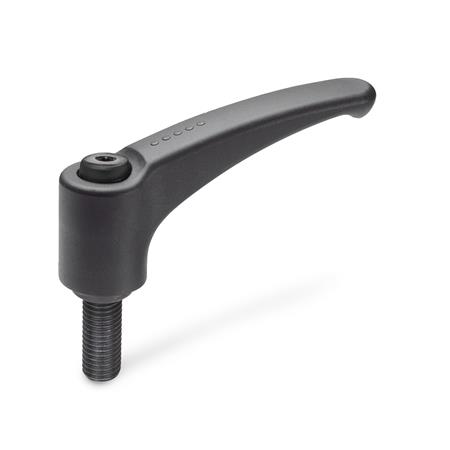

| Manufacturer designation (German) | Verstellbare Klemmhebel, Kunststoff, Schraube Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
