Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl-Feinguss |
|---|
| Durchmesser d1 | 25 |
|---|
| Anschlussgewinde d2 | M 12 |
|---|
| a | 11 |
|---|
| b | 18 |
|---|
| h1 | 18 |
|---|
| h2 ≈ | 52 |
|---|
| l ≈ | 87 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,125 kg |
|---|

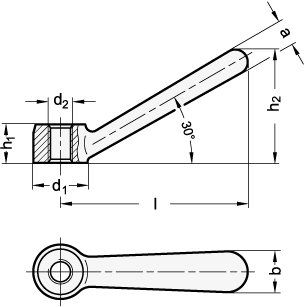

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 206 |
|---|
| Order designation | GN 206-25-M12-NI |
|---|
| EAN | 4045525597921 |
|---|
| Manufacturer designation (German) | Spannmuttern, Edelstahl-Feinguss |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181639 |
|---|
| eCl@ss 5.1.4 | 23110710 |
|---|
