Technical data (manufacturer information, German terms)
| Schalthebeldurchmesser d1 | 50 |
|---|
| d2 | 12 |
|---|
| Bohrungskennzeichen | K - mit Nabennut DIN 6885-1 P9 |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | 8 |
|---|
| d4 | 20 |
|---|
| h1 | 17 |
|---|
| h2 | 5 |
|---|
| h3 ≈ | 45 |
|---|
| Länge l ≈ | 82 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,240 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 211 |
|---|
| Order designation | GN 211-50-K12 |
|---|
| EAN | 4045525084131 |
|---|

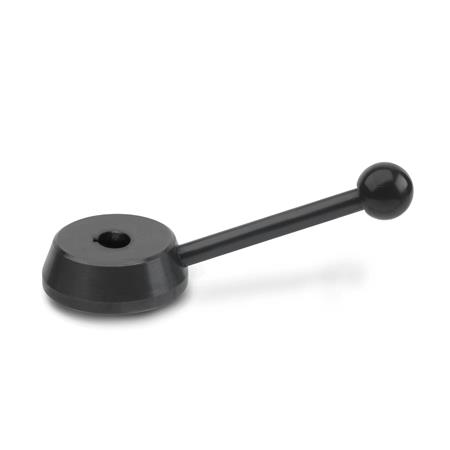

| Manufacturer designation (German) | Schalthebel, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010502 |
|---|
