Technical data (manufacturer information, German terms)
| Einsatzdurchmesser d1 | 22 |
|---|
| Anschlussgewinde d2 | M 14 |
|---|
| Griffkoerpermaterial | ST - Stahl |
|---|
| b | 39,5 |
|---|
| d4 | 14 |
|---|
| d5 | 33 |
|---|
| h | 17 |
|---|
| l | 187 |
|---|
| max. zul. Drehmoment in Nm | 130 |
|---|
| Form | M - mit Gewinde |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,097 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 316 |
|---|
| Order designation | GN 316-22-M14 |
|---|
| EAN | 4045525542068 |
|---|

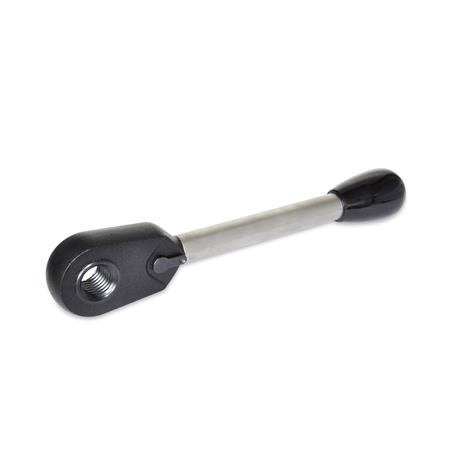

| Manufacturer designation (German) | Ratschenspanner, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82042000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
