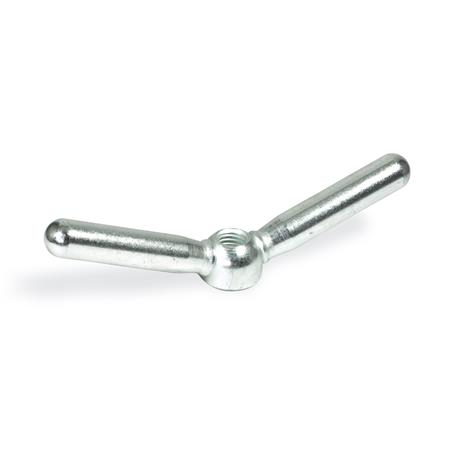

Doppelarmige Spannmuttern GN 99.7, Stahl – Ganter GN 99.7-20-M10

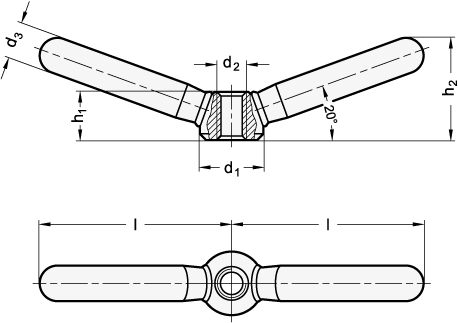

Dimensional drawing Ganter GN 99.7-20-M10
Preview: Doppelarmige Spannmuttern GN 99.7, Stahl – Ganter GN 99.7-20-M10
Preview: Dimensional drawing Ganter GN 99.7-20-M10
Doppelarmige Spannmuttern GN 99.7, Stahl
Doppelarmige Spannmuttern GN 99.7, Stahl – Ganter GN 99.7-20-M10
Dimensional drawing Ganter GN 99.7-20-M10
Mobile Preview: Doppelarmige Spannmuttern GN 99.7, Stahl – Ganter GN 99.7-20-M10
Mobile Preview: Dimensional drawing Ganter GN 99.7-20-M10

Doppelarmige Spannmuttern GN 99.7, Stahl

Product No.:
99.7-20-M10
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Durchmesser d120
    Anschlussgewinde d2M 10
    GriffkoerpermaterialST - Stahl
    d312
    h115
    h2 ≈32
    Länge l ≈59,5
    RoHSJa
    Gewicht0,116 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 99.7
    Order designationGN 99.7-20-M10
    EAN4045525424500
    Manufacturer designation (German)Doppelarmige Spannmuttern, Stahl
    Order unitPiece
    Customs tariff number73181692
    eCl@ss 5.1.423110710
