Technical data (manufacturer information, German terms)
| Durchmesser d1 | 40 |
|---|
| Anschlussgewinde d2 | M 20 |
|---|
| Werkstoff | ST - Stahl |
|---|
| a | 18 |
|---|
| b | 28 |
|---|
| h1 | 28 |
|---|
| h2 ≈ | 87 |
|---|
| l ≈ | 140 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,820 kg |
|---|

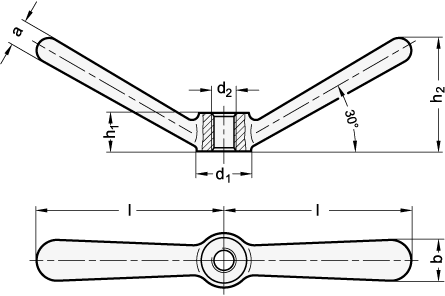

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 206.1 |
|---|
| Order designation | GN 206.1-40-M20 |
|---|
| EAN | 4045525081710 |
|---|
| Manufacturer designation (German) | Doppelarmige Spannmuttern, Stahlguss |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181699 |
|---|
| eCl@ss 5.1.4 | 23110710 |
|---|
