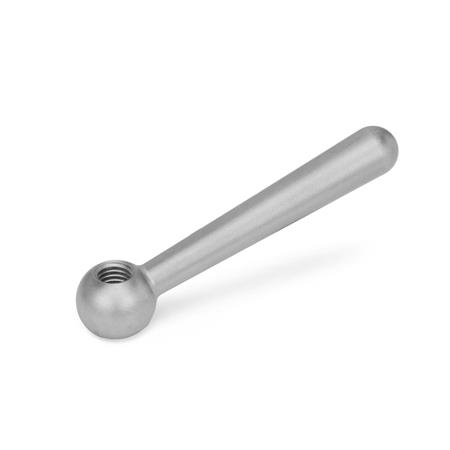

Kegelgriffe DIN 99, Edelstahl – Ganter DIN 99-80-M10-N-NI
Dimensional drawing Ganter DIN 99-80-M10-N-NI
Preview: Kegelgriffe DIN 99, Edelstahl – Ganter DIN 99-80-M10-N-NI
Preview: Dimensional drawing Ganter DIN 99-80-M10-N-NI
Kegelgriffe DIN 99, Edelstahl
Kegelgriffe DIN 99, Edelstahl – Ganter DIN 99-80-M10-N-NI
Dimensional drawing Ganter DIN 99-80-M10-N-NI
Mobile Preview: Kegelgriffe DIN 99, Edelstahl – Ganter DIN 99-80-M10-N-NI
Mobile Preview: Dimensional drawing Ganter DIN 99-80-M10-N-NI

Kegelgriffe DIN 99, Edelstahl

Product No.:
99-80-M10-N-NI
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNI - Edelstahl
    Grifflänge l180
    Anschlussgewinde d1M 10
    FormN - Griff schräg mit Gewinde
    b14,5
    d313
    d4 ≈15
    d520
    h ≈38
    l2 ≈76
    RoHSJa
    Gewicht0,070 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partDIN 99
    Order designationDIN 99-80-M10-N-NI
    EAN4045525421714
    Manufacturer designation (German)Kegelgriffe, Edelstahl
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010190
