Technical data (manufacturer information, German terms)
| Grifflänge l1 | 120 |
|---|
| Anschlussgewinde d1 | M 12 |
|---|
| Gewindelänge l2 | 20 |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Griffkoerpermaterial | ZD - Zink-Druckguss |
|---|
| d3 | 16 |
|---|
| d4 | 32 |
|---|
| h1 | 29,5 |
|---|
| h2 | 2 |
|---|
| h3 | 41,5 |
|---|
| h4 Rastweg | 2,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,206 kg |
|---|

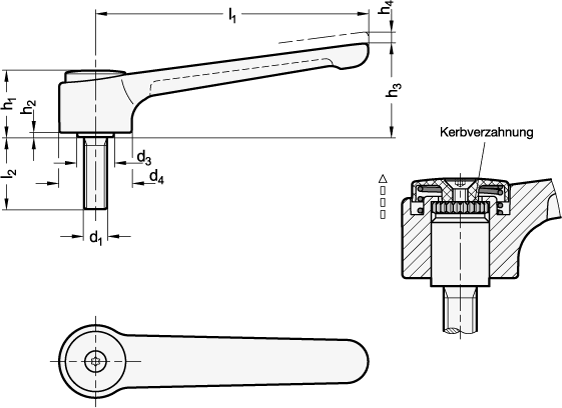

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 126.1 |
|---|
| Order designation | GN 126.1-120-M12-20-SW |
|---|
| EAN | 4045525431591 |
|---|
| Manufacturer designation (German) | Verstellbare Flachspannhebel, Zink-Druckguss, Schraube Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010501 |
|---|
