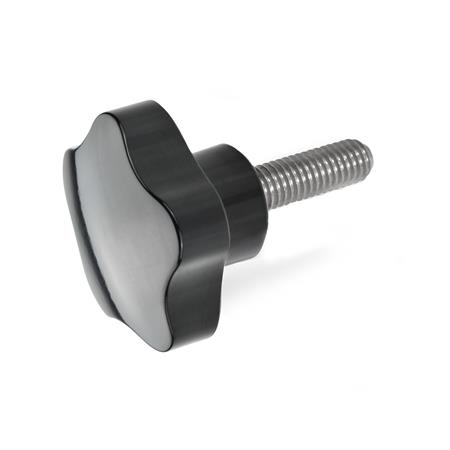

Sterngriffschrauben GN 5337.5, Edelstahl – Ganter GN 5337.5-32-M6-35

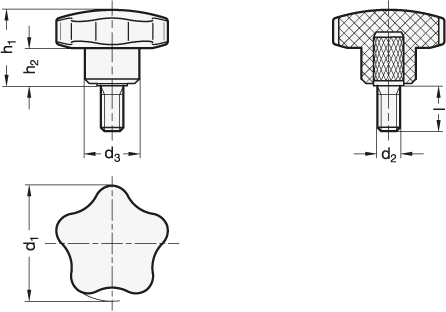

Dimensional drawing Ganter GN 5337.5-32-M6-35
Preview: Sterngriffschrauben GN 5337.5, Edelstahl – Ganter GN 5337.5-32-M6-35
Preview: Dimensional drawing Ganter GN 5337.5-32-M6-35
Sterngriffschrauben GN 5337.5, Edelstahl
Sterngriffschrauben GN 5337.5, Edelstahl – Ganter GN 5337.5-32-M6-35
Dimensional drawing Ganter GN 5337.5-32-M6-35
Mobile Preview: Sterngriffschrauben GN 5337.5, Edelstahl – Ganter GN 5337.5-32-M6-35
Mobile Preview: Dimensional drawing Ganter GN 5337.5-32-M6-35

Sterngriffschrauben GN 5337.5, Edelstahl

Product No.:
5337.5-32-M6-35
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d132
    Gewinde d2M 6
    Länge l35
    WerkstoffKU - Kunststoff
    d319
    h123
    h211
    RoHSJa
    Gewicht0,024 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5337.5
    Order designationGN 5337.5-32-M6-35
    EAN4045525282629
    Manufacturer designation (German)Sterngriffschrauben mit Edelstahl-Gewindestift, Duroplast
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423010102
