Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 32 |
|---|
| Gewinde d2 | M 6 |
|---|
| Länge l | 45 |
|---|
| Werkstoff | TE - Thermoplast (Polyamid PA) |
|---|
| d3 | 12 |
|---|
| h1 | 20 |
|---|
| h2 | 10 |
|---|
| h3 | 8,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,025 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6336.4 |
|---|
| Order designation | GN 6336.4-TE-32-M6-45 |
|---|
| EAN | 4045525183957 |
|---|

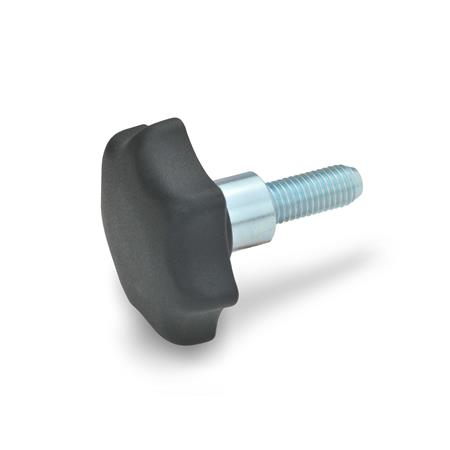

| Manufacturer designation (German) | Sterngriffschrauben, Kunststoff, mit vorstehendem Stahl-Bund, Gewindestift Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
