Technical data (manufacturer information, German terms)
| Werkstoff Buchse | NI - Edelstahl |
|---|
| Griffdurchmesser d1 | 40 |
|---|
| Gewinde d2 | M 8 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d4 | 14 |
|---|
| h1 | 25 |
|---|
| h2 ≈ | 13 |
|---|
| h3 | 10 |
|---|
| t min. | 14 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,020 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6335.2 |
|---|
| Order designation | GN 6335.2-40-M8-E-NI |
|---|
| EAN | 4045525067677 |
|---|

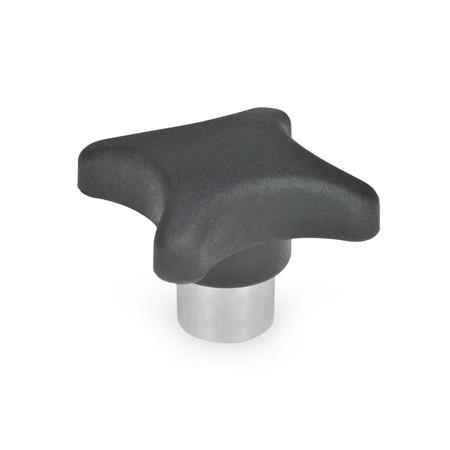

| Manufacturer designation (German) | Kreuzgriffe, Thermoplast, mit vorstehender Edelstahl-Buchse |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181639 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
