Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 50 |
|---|
| Gewinde d2 | M 10 |
|---|
| Länge l1 | 30 |
|---|
| Druckzapfen-Werkstoff | MS - Messing |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| l2 MS-Zapfen | 2 |
|---|
| KU-Zapfen | 1,9 |
|---|
| d3 MS-Zapfen | 8 |
|---|
| d4 | 22 |
|---|
| h1 | 32 |
|---|
| h2 | 17 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,040 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6336.10 |
|---|
| Order designation | GN 6336.10-50-M10-30-MS |
|---|
| EAN | 4045525624924 |
|---|

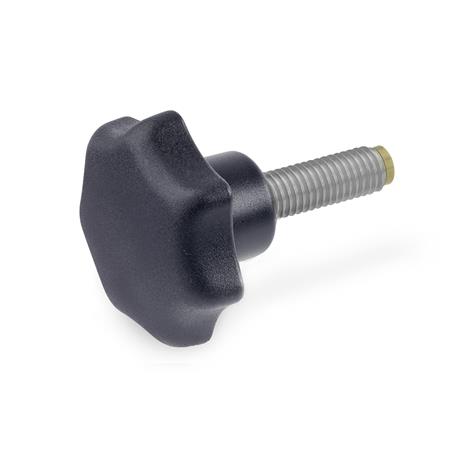

| Manufacturer designation (German) | Sterngriffschrauben mit Druckzapfen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
