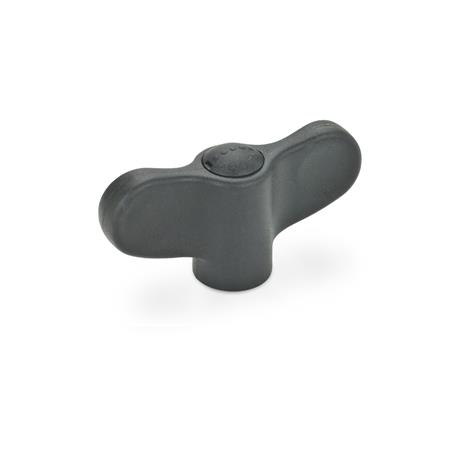

Flügelmuttern GN 634.1, Buchse Edelstahl – Ganter GN 634.1-48-M8-E-DSG
Dimensional drawing Ganter GN 634.1-48-M8-E-DSG
Preview: Flügelmuttern GN 634.1, Buchse Edelstahl – Ganter GN 634.1-48-M8-E-DSG
Preview: Dimensional drawing Ganter GN 634.1-48-M8-E-DSG
Flügelmuttern GN 634.1, Buchse Edelstahl
Flügelmuttern GN 634.1, Buchse Edelstahl – Ganter GN 634.1-48-M8-E-DSG
Dimensional drawing Ganter GN 634.1-48-M8-E-DSG
Mobile Preview: Flügelmuttern GN 634.1, Buchse Edelstahl – Ganter GN 634.1-48-M8-E-DSG
Mobile Preview: Dimensional drawing Ganter GN 634.1-48-M8-E-DSG

Flügelmuttern GN 634.1, Buchse Edelstahl

Product No.:
634.1-48-M8-E-DSG
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d148
    Gewinde d2M 8
    Farbe der AbdeckkappeDSG - schwarzgrau, RAL 7021, matt
    FormE - mit Gewinde-Sackloch
    WerkstoffPA - Kunststoff, Polyamid
    d313,5
    d510
    b7
    h124
    h25,5
    h312
    h422
    RoHSJa
    Gewicht0,009 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 634.1
    Order designationGN 634.1-48-M8-E-DSG
    EAN4045525700710
    Manufacturer designation (German)Flügelmuttern mit Edelstahl-Buchse
    Order unitPiece
    Customs tariff number39269097
    eCl@ss 5.1.423110710
