Technical data (manufacturer information, German terms)
| Gewinde d1 | M 6 |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 24 |
|---|
| d3 | 16 |
|---|
| d4 | 6,7 |
|---|
| h | 14 |
|---|
| k | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,037 kg |
|---|

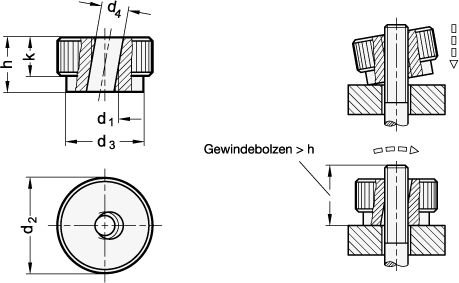

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6303.1 |
|---|
| Order designation | GN 6303.1-M6 |
|---|
| EAN | 4045525322028 |
|---|
| Manufacturer designation (German) | Schnellspann-Rändelmuttern, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181692 |
|---|
| eCl@ss 5.1.4 | 23110708 |
|---|
