Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 53 |
|---|
| Gewinde d2 | M 10 |
|---|
| Gewindelänge l1 | 30 |
|---|
| Form | ZK - Kugelzapfen |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d3 | 24 |
|---|
| d4 | 8 |
|---|
| d5 | 6,5 |
|---|
| d6 | 7,8 |
|---|
| h1 | 32 |
|---|
| h2 | 16 |
|---|
| l2 | 2 |
|---|
| l3 | 1,9 |
|---|
| l4 ≈ | 7,3 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,060 kg |
|---|

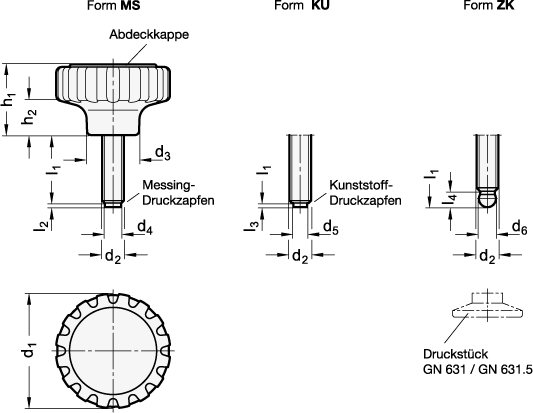

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7336.5 |
|---|

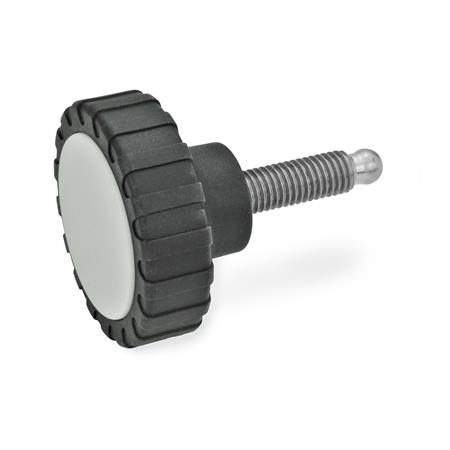

| Order designation | GN 7336.5-53-M10-30-ZK |
|---|
| EAN | 4045525851641 |
|---|
| Manufacturer designation (German) | Rändelgriffschrauben mit Messing- / Kunststoff- / Kugelzapfen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23110116 |
|---|
