Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 63 |
|---|
| Gewinde d2 (Messing Buchse) | M 10 |
|---|
| Buchse Werkstoff | MS - Messing |
|---|
| Farbe der Abdeckkappe | DOR - orange, RAL 2004, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 23 |
|---|
| h1 | 30,5 |
|---|
| h2 | 16 |
|---|
| t min. | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,038 kg |
|---|

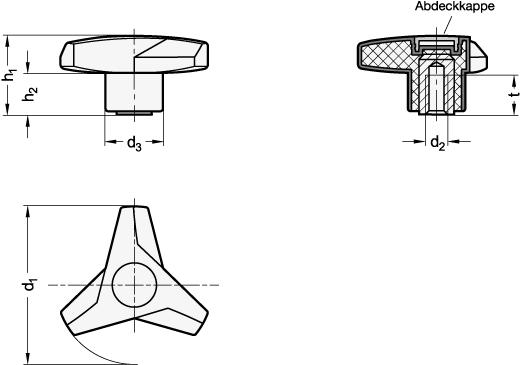

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 533.6 |
|---|
| Order designation | GN 533.6-63-M10-MS-DOR |
|---|
| EAN | 4045525737822 |
|---|
| Manufacturer designation (German) | Dreisterngriffe, Softline, Buchse Messing / Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 74153300 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
